HOWO HW76 6×4 Dump Truck · 371 hp
The HOWO HW76 6×4 dump truck is built for demanding construction and earthmoving operations, powered by a 371 hp WD615.47 diesel engine and equipped with a durable, configurable dump body.
Choose a HOWO HW76 configuration
HOWO HW76 · 6×4 DUMP TRUCK
Configuration overview
The HOWO HW76 6×4 remanufactured dump truck is equipped with a remanufactured WD615.47 371 hp engine, a HW19712 remanufactured manual transmission in 10/12-speed configurations, and a new remanufactured HW76 flat-top single-sleeper cab. Its specification includes E2 emissions, a new 8+8/300 frame, mechanical suspension with 10/12 spring leaves, and a remanufactured AC16/HC16 rear axle rated at 16,000 kg. Overall dimensions are 8,545 × 2,496 × 3,450 mm, wheelbase is 3,825 + 1,350 mm, and listed track widths are 2,022 + 1,830/1,830 mm. The grid-pattern dump body is available in 5,600/5,800/6,000 × 2,300 × 1,500 mm configurations. A 300 L fuel tank, 12,500 kg curb weight, 10 new tires and ABS complete the work-ready package.
Construction, earthmoving and aggregate transport
A balanced 6×4 work platform combines a 371 hp powertrain, mechanical suspension and a configurable dump body for demanding site-haul cycles.
Buyer-side sourcing support
CRTA buyer advisors coordinate model matching, factory comparison, refurbishment scope, inspection, warranty arrangements and logistics planning—from the sourcing brief through delivery coordination.
Technical specifications
| Model / drive | HOWO HW76; 6×4 dump truck |
|---|---|

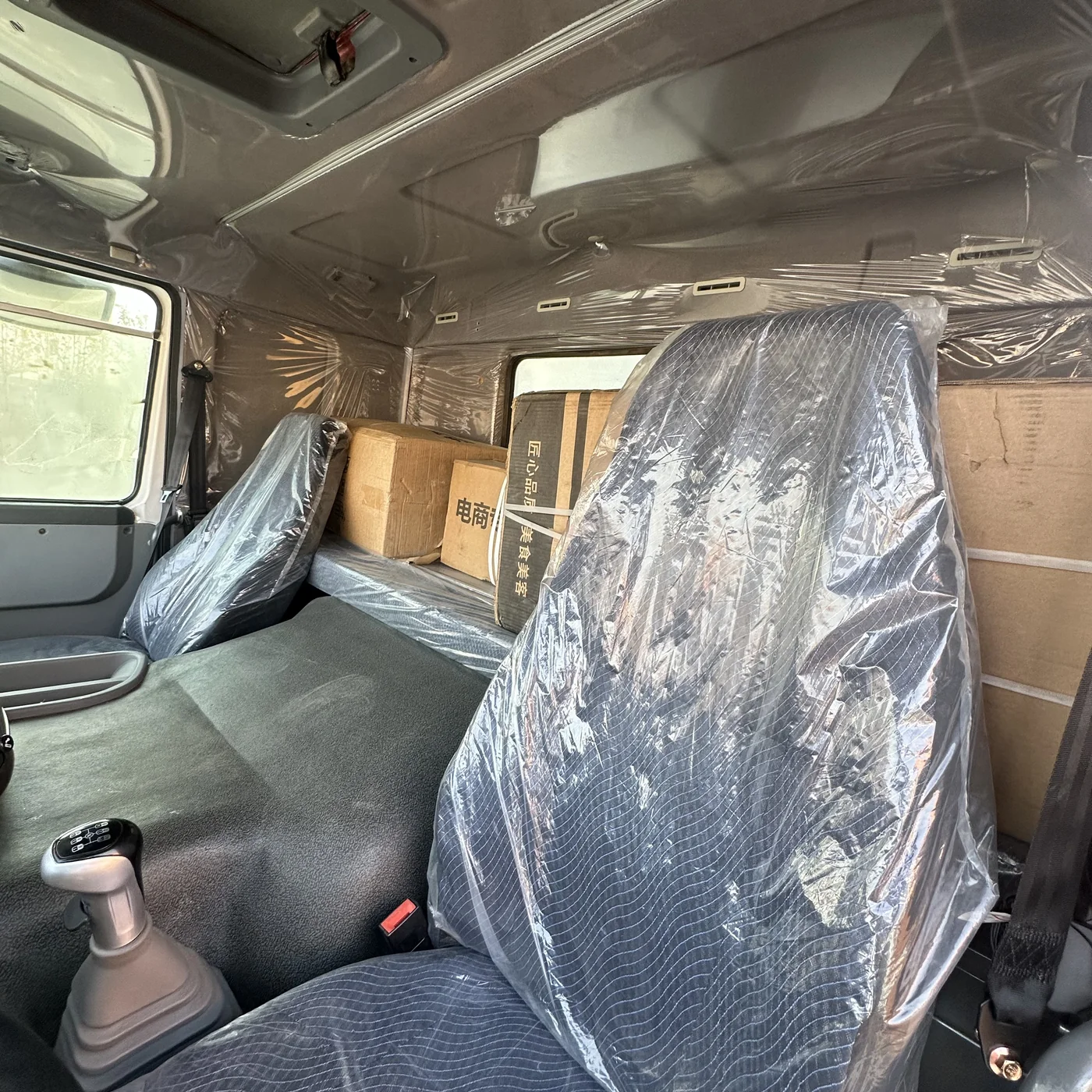

| Cab | New remanufactured HW76 flat-top, single-sleeper cab |

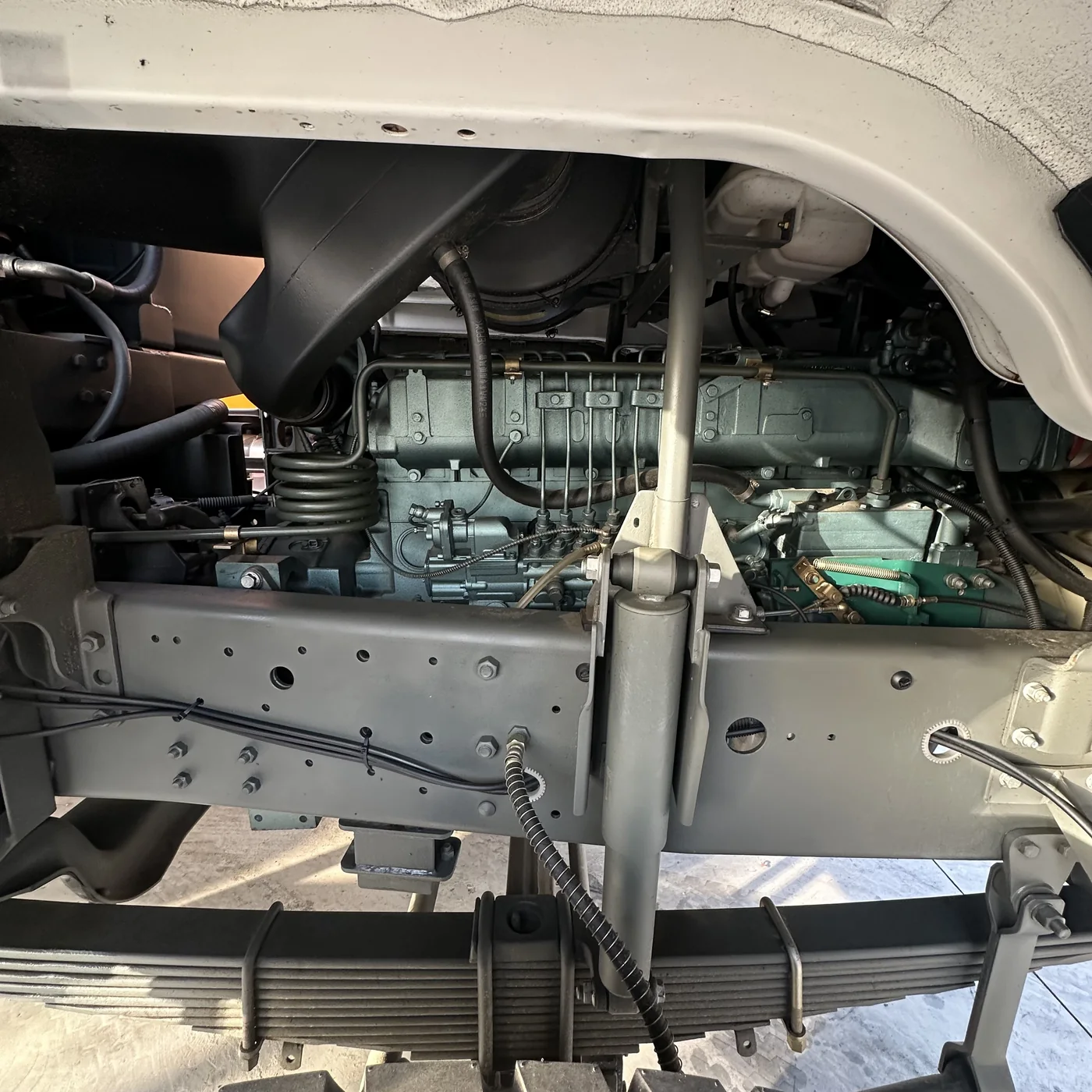

| Engine | WD615.47 remanufactured engine; 371 hp; new engine oil and antifreeze |
| Transmission | HW19712 remanufactured manual transmission; 10/12-speed configurations; new transmission oil |
| Emissions | E2 |

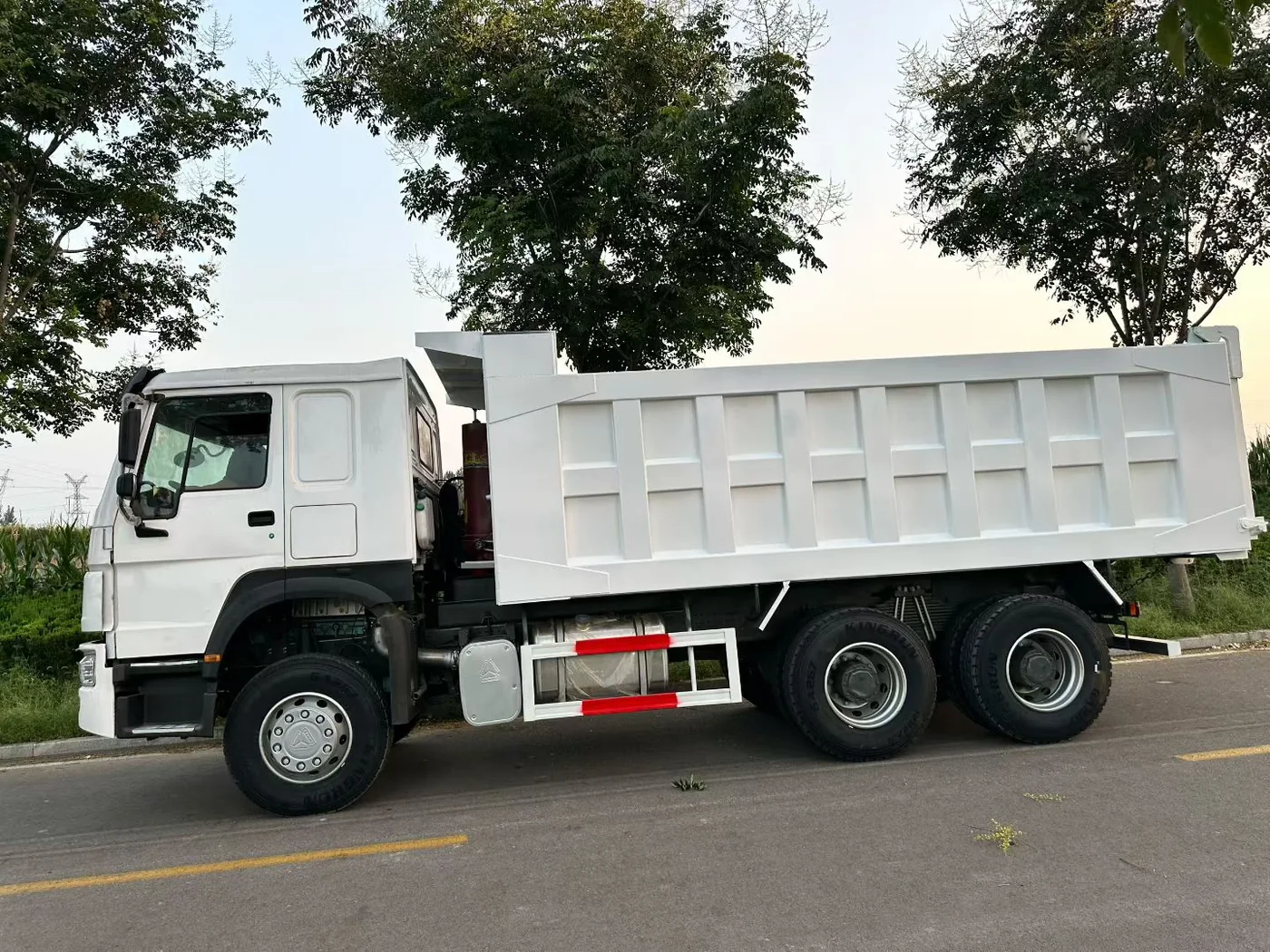

| Dimensions / wheelbase | 8,545 × 2,496 × 3,450 mm; 3,825 + 1,350 mm |
| Track width | 2,022 + 1,830/1,830 mm |
| Frame | New 8+8/300 frame |
| Suspension / springs | Mechanical suspension; 10/12 spring leaves |

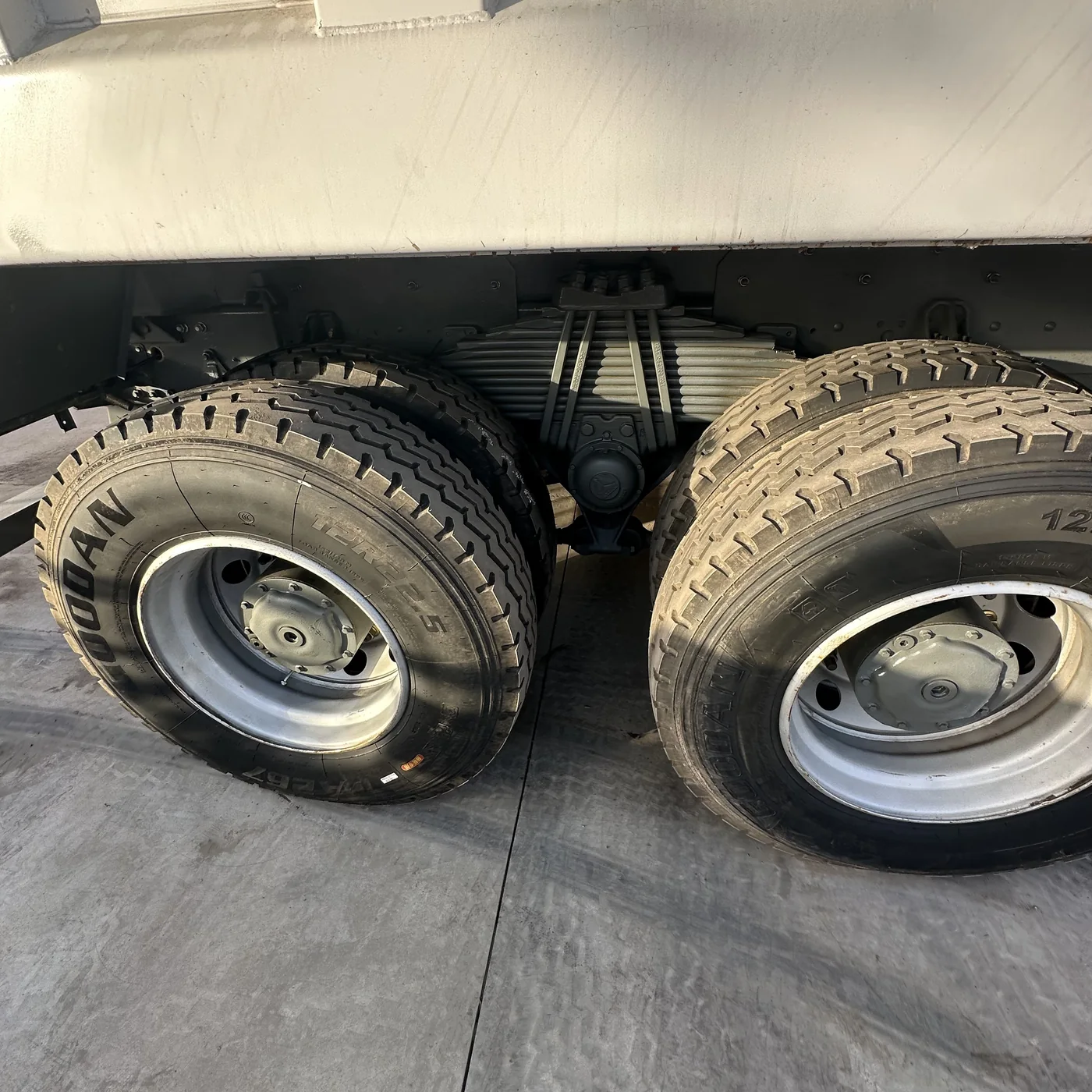

| Rear axle / load capacity | Remanufactured AC16/HC16 rear axle; 16,000 kg |
| Dump body | Grid-pattern body; 5,600/5,800/6,000 × 2,300 × 1,500 mm |
| Fuel / curb weight | 300 L fuel tank; 12,500 kg curb weight |
| Tires | 10 new tires |
| Braking | ABS |
| Remanufacturing scope | Replacement air and electrical circuits, air reservoirs, gear-shift and throttle cables, intercooler, radiator, intake / exhaust flex connections, battery and bracket, brake wheel cylinders, vehicle filters, air-line dryers, rubber bushings and rubber bumpers |
